EH 294 Series - EMA3 Diagnostic Quick Couplings (Steel)

EH 294 Series - EMA3 Diagnostic Quick Couplings (Steel)
EH 294 Series - EMA3 Diagnostic Quick Couplings (Steel)EH 294 Series - EMA3 Diagnostic Quick Couplings (Steel)EH 294 Series - EMA3 Diagnostic Quick Couplings (Steel)EH 294 Series - EMA3 Diagnostic Quick Couplings (Steel)EH 294 Series - EMA3 Diagnostic Quick Couplings (Steel)
Share
CategoriesTest Quick Couplers
Trademark/BrandEH
InterchangePARKER EMA3 SERIES
Update TimeFeb 4,2026
Contact Now
Detail Information
Items
Specs

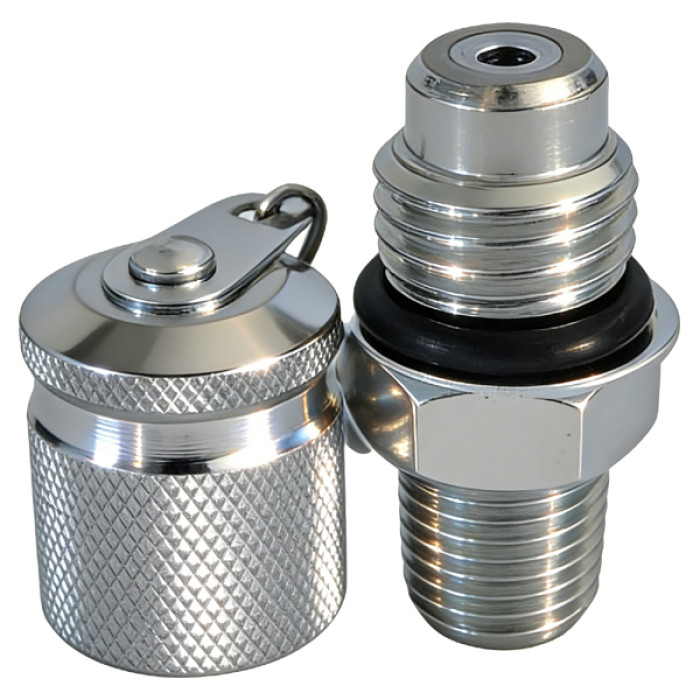

This EH series is interchangeable with the PARKER EMA3 SERIES. Steel Product. EMA couplings serve as diagnostic test points for Parker SensoControl® equipment and mechanical gauges. Designed for permanent installation at key monitoring locations, they feature a pressure cap to prevent damage and contamination. Their proven twist-to-connect design allows for safe connection under pressure. Compact and compatible with high-pressure hoses, EMA test points offer flexible installation in fluid systems.

Test Coupler-EMA3


Other Threads/Fitting Ends Are Available Upon Request
Art. No.
Body Size
(inch)
Wrench Flats
Interface Thread Size
Overall
Length
(in)
Weight
(lbs)
End Thread
Size
HFSFC29418-1/8"NPT
1/8''
17mm
M16x2
1.81
0.15
1/8" NPT
Male
HFSFC29418-1/4"NPT
1/8''
17mm
M16x2
1.98
0.16
1/4" NPT
Male
HFSFC29418-7/16UNF
1/8''
17mm
M16x2
1.88
0.15
7/16-20UNF Male
HFSFC29418-9/16UNF
1/8''
19mm
M16x2
1.88
0.17
9/16-18UNF Male
HFSFC29418-M8x1
1/8''
17mm
M16x2
1.81
0.15
M8x1 Male
HFSFC29418-M10x1
1/8''
17mm
M16x2
1.85
0.15
M10x1 Male
HFSFC29418-M12x1.5
1/8''
17mm
M16x2
1.94
0.16
M12x1.5 Male
HFSFC29418-M14x1.5
1/8''
19mm
M16x2
1.94
0.16
M14x1.5 Male
HFSFC29418-G1/8
1/8''
19mm
M16x2
1.77
0.15
G1/8 Male
HFSFC29418-G1/4
1/8''
19mm
M16x2
1.94
0.16
G1/4 Male
HFSFC29418-G3/8
1/8''
21mm
M16x2
1.94
0.16
G3/8 Male

Test Coupler-Accessories

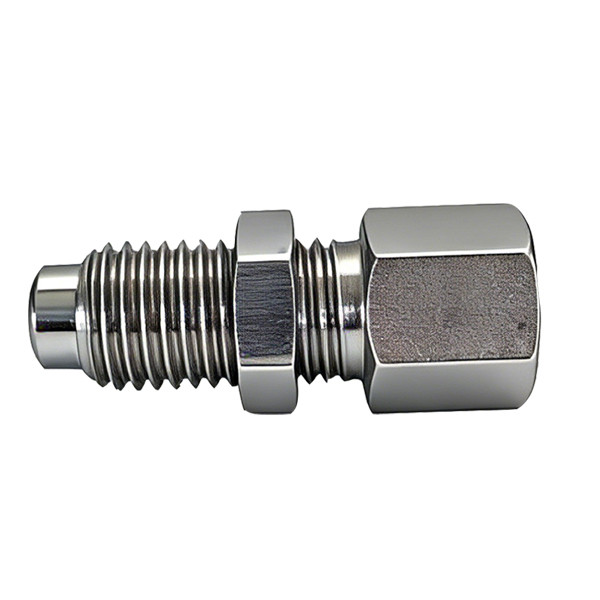

Hydraulic Diagnostic Quick Coupling male thread
EMA Gauge Adaptor
Art. No.
Body Size
(inch)
Wrench Flats
Interface Thread Size
Overall
Length
(in)
Weight
(lbs)
End Thread
Size
HFSFC39418-1/4"NPT
1/8''
19mm
M16x2
2.22
0.15
1/4" NPT
Female

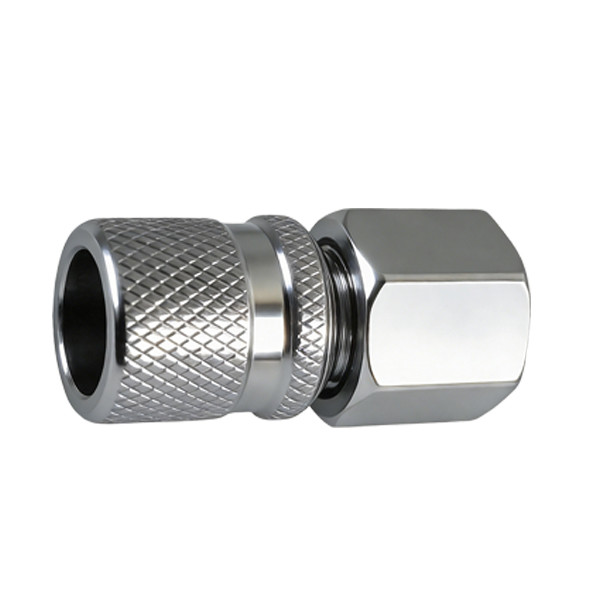

EMA Gauge Adaptor
Art. No.
Body Size
(inch)
Wrench Flats
Interface Thread Size
Overall
Length
(in)
Weight
(lbs)
End Thread
Size
HFSFC49418-1/4"NPT
1/8''
19mm
M16x2
2.22
0.18
1/4" NPT
Female
HFSFC49418-7/16UNF
1/8''
19mm
M16x2
1.6
/
7/16-20UNF
Female

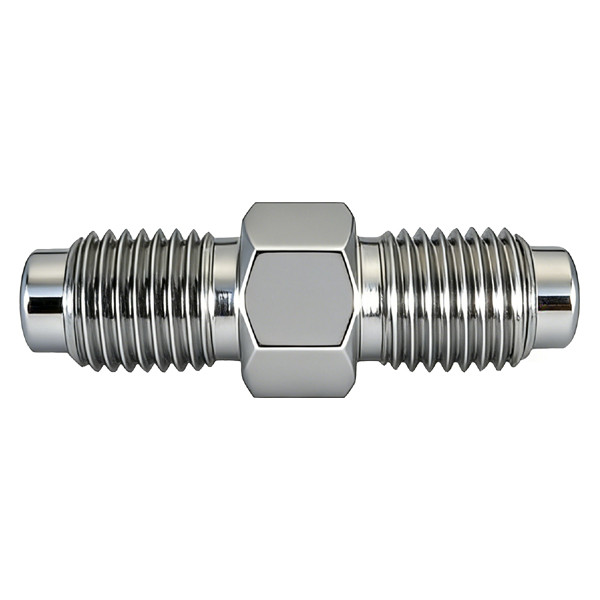

Union
Art. No.
Body Size
(inch)
Wrench Flats
Interface Thread Size
Overall
Length
(in)
Weight
(lbs)
End Thread
Size
HFSFC59418-M16x2
1/8''
17mm
M16x2
1.65
0.11
M16x2
Transducer Adaptors
Art. No.
Body Size
(inch)
Wrench Flats
Interface Thread Size
Overall
Length
Weight
(lbs)
End Thread
Size
HFSFC69418-G1/4
1/8''
27mm
M16x2
32mm
0.3
1/4-19 BSPP
HFSFC69418-G1/2
1/8''
27mm
M16x2
36mm
0.3
1/2-14 BSPP
Flexible Hose
Art. No.
Length
(in)
Length (mm)
Thread Size
HFSFC79418-200
7.9
200
M16x2
HFSFC79418-400
15.75
400
M16x2
HFSFC79418-800
31.5
800
M16x2
HFSFC79418-1000
39.38
1000
M16x2
HFSFC79418-2000
78.75
2000
M16x2
HFSFC79418-3000
157.5
4000
M16x2
Hose Assembly
Art. No.
Length
(in)
Length (mm)
Coupling
HFSFC9418-19
19
483
PD (EH 94 series)
HFSFC9418-32
32
813
PD (EH 94 series)
HFSFC9418-120
120
3048
PD (EH 94 series)
HFSFC9418-240
240
6096
PD (EH 94 series)

Technical Specifications

Dash Size
Body Size (Inch)
Max. Work PressureMale (bar)
Max. Work PressureFemale (bar)
Max. Work PressureCoupled (bar)
Max Connect-Under-Pressure
(bar)
Rated Flow(gpm)
02
1/8''
620
620
620
400
0.8
Material:
Steel
Seals:
NBR, Seals can be customized to meet your special work condition/media
Working Temperatures:
-25 °C to 125 °C, Customizable
Surface Treatment:
MATE 500 (CRIII)
Specifications:

Market Interchange

PARKER EMA3 SERIES

Valve Type:
/
Connection:
Screw To Connect
Disconnection:
Unscrew To Disconnect
Connection Under Pressure:
Allowed
