Pneumatic Quick Couplers

Pneumatic Quick Couplers are used in industries where gas are used as the energy transmitting media. Our Pneumatic Quick Couplers interchange with quick couplers from Rectus, Parker, Hansen, CEJN, TEMA, Foster, JWL, EATON and others.

Discover how EH's Pneumatic Quick Couplers can streamline your operations, reduce downtime, and provide unmatched reliability in the toughest applications:

EH 02,21 Series | RECTUS Style Pneumatic Quick Coupling (Brass, Steel)
EH 26 Series | RECTUS Style Pneumatic Quick Coupling (Brass)
EH 29 Series | RECTUS Style Pneumatic Quick Coupling, Instant Air Couplings, Adaptors, Swivel Adaptors (Steel)
EH 1501 Series | BRASS TAPER MALE HOSE TAIL FITTING (Brass)

Note: EH is an independent manufacturer producing products including Pneumatic Quick Couplers. All referenced brand names are trademarks of their respective owners and are used solely to indicate product compatibility.

4 results

ViewShowcase

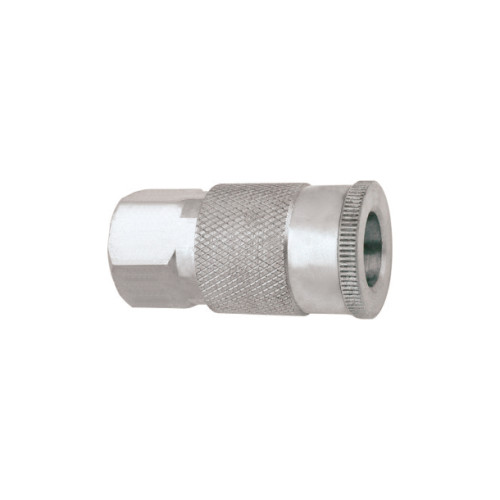

EH 02,21 Series | RECTUS Style Pneumatic Quick Coupling (Brass, Steel)

This EH series is interchangeable with Parker 20 series, Parker 30 series, Hansen 1000 series, Hansen 3000 series, Rectus 23KA series, Rectus 24 series, Rectus 1400 series, Rectus 1423 series, CEJN 310 series, TEMA 1400 series, FOSTER 3/4/5/6 SERIES, GROMELLE 600 series, JWL 521 series, JWL 531 series, and Eaton 43 series pneumatic quick couplers.
Brass / Steel Product. This sleeve-type coupler accepts industrial interchange. It is widely used to connect air lines and low-pressure fluids. Its compact and economical design uses a ball locking mechanism consisting of captive steel balls that engage the locking groove on the mating nipple. The sliding spring-loaded sleeve on the coupler must be manually retracted to connect or disconnect the nipple. Common applications include compressed air, water, grease, paint, limited vacuum, and limited gases.

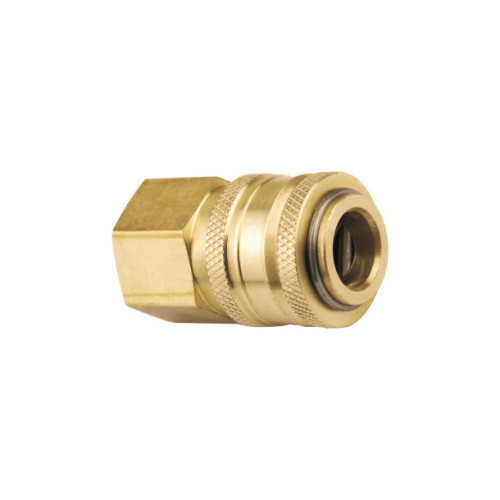

EH 26 Series | RECTUS Style Pneumatic Quick Coupling (Brass)

This EH series is interchangeable with RECTUS 26KA SERIES, RECTUS 25KA SERIES, TEMA 1600 SERIES, CEJN 320 SERIES, and DIXON CJ SERIES. Brass Product. This sleeve-type coupler accepts industrial interchange. It is widely used to connect air lines and low-pressure fluids. Its compact and economical design uses a ball locking mechanism consisting of captive steel balls that engage the locking groove on the mating nipple. The sliding spring-loaded sleeve on the coupler must be manually retracted to connect or disconnect the nipple. Common applications include compressed air, water, grease, paint, limited vacuum, and limited gases.

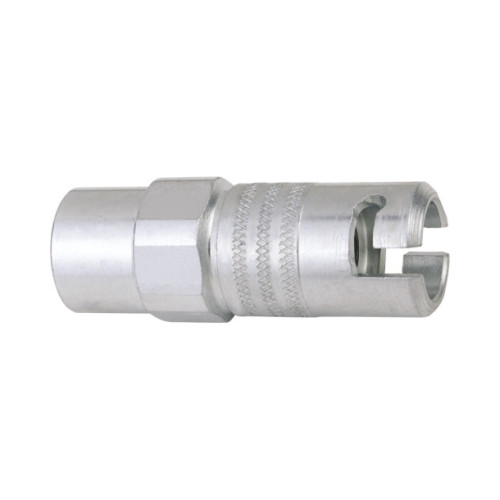

EH 29 Series | RECTUS Style Pneumatic Quick Coupling, Instant Air Couplings, Adaptors, Swivel Adaptors (Steel)

Pneumatic Quick Coupling, Instant Air Couplings, Adaptors, Swivel Adaptors (Steel). Steel Product. This coupling system has a safety lock. To disconnect, the plug must first be twisted out from the coupling before it can be unlocked. This prevents unintentional disconnection.

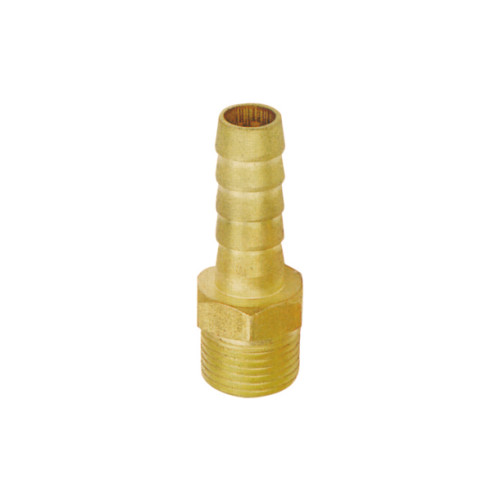

EH 1501 Series | BRASS TAPER MALE HOSE TAIL FITTING (Brass)

Brass Product. Brass taper male hose tail fittings, with BSPP taper male thread.
